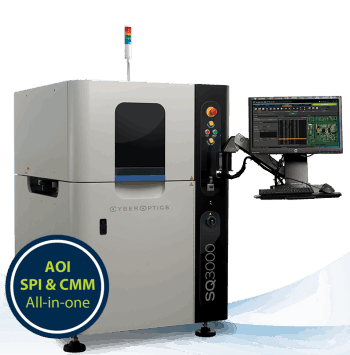

SQ3000 - AOI, SPI & CMM, all-in-one

All-in-one solution that’s loaded with powerful tools that cover inspection and measurement for AOI, SPI and CMM applications.

The SQ3000 offers unmatched accuracy with the revolutionary Multi-Reflection Suppression (MRS) technology by meticulously identifying and rejecting reflections caused by shiny components. Effective suppression of multiple reflections is critical for accurate measurement, making MRS an ideal technology solution for a wide range of applications including those with very high quality requirements.

Mobirise

SE3000 SPI

A Leap Forward in Solder Paste Inspection

Maximize yields with the World’s First SPI system incorporating the MRS Sensor technology. When only the very best will do.

The new SE3000 3D SPI system is the world’s first SPI system to incorporate the industry-leading Multiple-Reflection Suppression (MRS) technology with a finer resolution for the best accuracy, repeatability and reproducibility – Even on the smallest paste deposits. Combined with the award-winning, easy-to-use SPI software, solder paste inspection has reached a new level of precision for the most stringent requirements.

SE3000-DD Dual Lane, Dual Sensor system and SE3000-X also available.

Mobirise

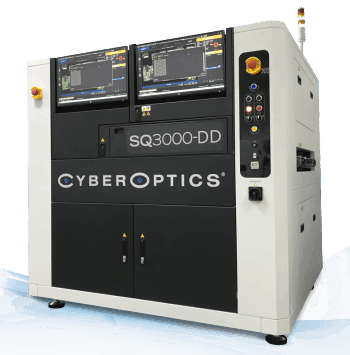

SQ3000-DD™ & SQ3000-D™

Maximum Flexibility for Increased Throughput

The SQ3000-DD 3D Automated Optical Inspection (AOI) System is an extension of the award-winning SQ3000™ 3D AOI platform. The dual lane, dual sensor system maximizes flexibility catering to varying PCD widths. This unique design provides the ability to inspect high volume assemblies, the convenience of inspecting different assemblies and board sizes simultaneously on different lanes, or even switching from dual lane to single lane mode to inspect very large boards.

Mobirise

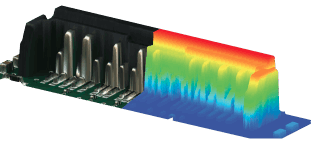

AOI 3D Image

Mobirise

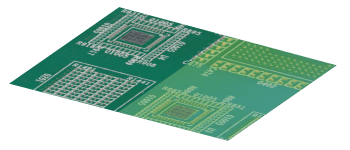

SPI

Mobirise

CMM
